1 Overview

2 Quick start

• Install Git for windows from: https://git-for-windows.github.io

• Install python 2.7 from https://www.python.org/ftp/python/2.7/python-2.7.msi The installation direcory is: C:\Python27

• Run the git for windows, add this line 'export PATH=/c/python27/:$PATH' into /etc/bash.bashrc

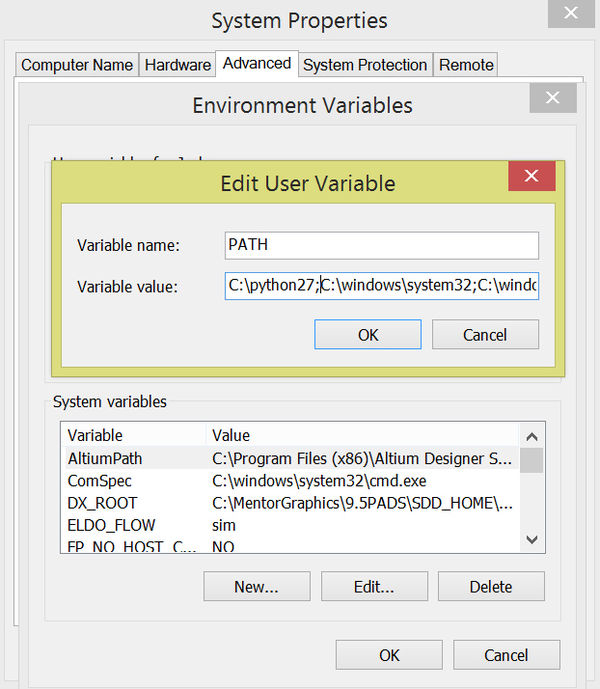

• Enter 'Control Panel' ---> All Control Panel Items ---> System ---> Advanced System Settings (System Properties) ---> Advanced ---> Environment Variables, add the python into PATH:

• Install Arduino IDE

• Run the git for windows, go to Arduino IDE installation directory:

$ cd /PATH/TO/Arduino
$ cd hardware
$ mkdir espressif
$ cd espressif
$ git clone git://github.com/espressif/arduino-esp32.git esp32
$ cd esp32/tools
$ python get.py   # waitting for generating the toolchain
$
$ cd ../../../../libraries
$ git clone git://github.com/miguelbalboa/rfid.git
Cloning into 'rfid'...
remote: Counting objects: 1105, done.
remote: Total 1105 (delta 0), reused 0 (delta 0), pack-reused 1105eceiving objects: K100%
Receiving objects: 100% (1105/1105), 1.35 MiB | 459.00 KiB/s, done.
Resolving deltas: 100% (582/582), done.
Checking connectivity... done.

• Restart Arduino IDE

3 Reference

For more information please refer to

• Noduino
• Noduino Quantum
